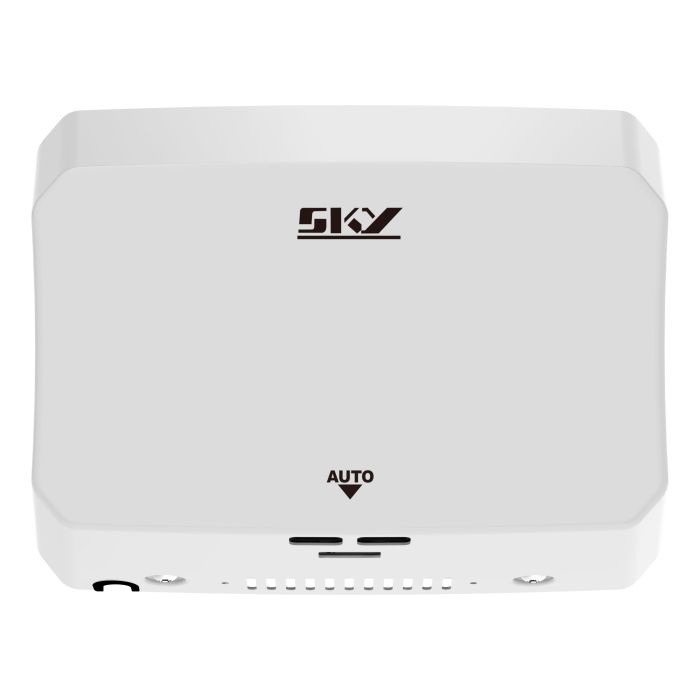

SKY-SLENDER AUTO HI-SPEED DRYER STEEL COVER, WHITE, EA

FEATURES Operating Voltage: 110-120V, 220-240V Material : Steel with eproxy finish Motor Type: Brush Type, Dual Ball Bearings Warm Air Speed Output:79-158mph Dryer Shall Deliver: 53.8CFM Motor Thermal Protection: Auto Reset @ 105 °C Heat Element 200-500 W @ 220 Vac Heat Thermal Protection: Auto Reset @ 85 °C Dry Time: Less than 15 Seconds Stand-by Power: 0.5 W Sensor Range: Auto Adjust , Standard 6" Circuit Operation: Infrared Automatic, self adjusting Time Protection: 60 Seconds Auto Shut Off Heat Assembly: 185F Sound Level: 75 ± dB-A at 1m Drip Proof: IP23 Isolation: Class 1 Net Weight: 7.5lbs Shipping Weight: 84.lbs Unit Size: 10-55/64 " X 8 1/2" x4" GENERAL SPECIFICATIONS Model Heater Motor Type Air Output CFM Sound Level 3055 250-500W Brush Type, Dual Ball Bearing 55° 53.80 75+/-1 ELECTRICAL SPECIFICATIONS Model Volts Amps Watts HZ Drying Level 3055 110-120V 8.40 1000 50/60 10-15 Sec WARRANTY In addition to Sky's one year guarantee, Sky extends a limited 5 years warranty from the date of installation on all parts to the original owner of the installed unit against defects in factory workmanship or material under normal use and service. This warranty is limited to the repair or exchange of defective parts at the option of SKY. GENERAL SAFETY INFORMATION Disconnect power before installation or servicing. This product intended for installation by a qualified service person. Use AWG No.12 solid conductor for wiring. All units must be supplied with a 3-wire service. The ground wire must be connected to the dryer's backplate. Failure to properly ground unit could result in severe electrical shock and / or death. Do not install dryer over washbasin. INSTALLATION 1. Fix the position card on the wall. Suitable height for hole "D" IS 50" from ground. 2. Drill 4 holes (A.B.C.D. 5/16" diameter and 3/8" depth.) 3. Take off the mounting instruction sheet. Hammer dowel into 4 holes. 4. Remove the housing fromthe base plate; fix the base plate firmly on to the wall. 5. Connections: Connect the live wire (colored red or brown) to the terminal block marked "L". Connect the natural wire (colored black or blue) to the terminal blocked marked "N". Connect the ground wire (colored green and yellow) to the green screw marked "". 6. Attach housing back to base plate.
