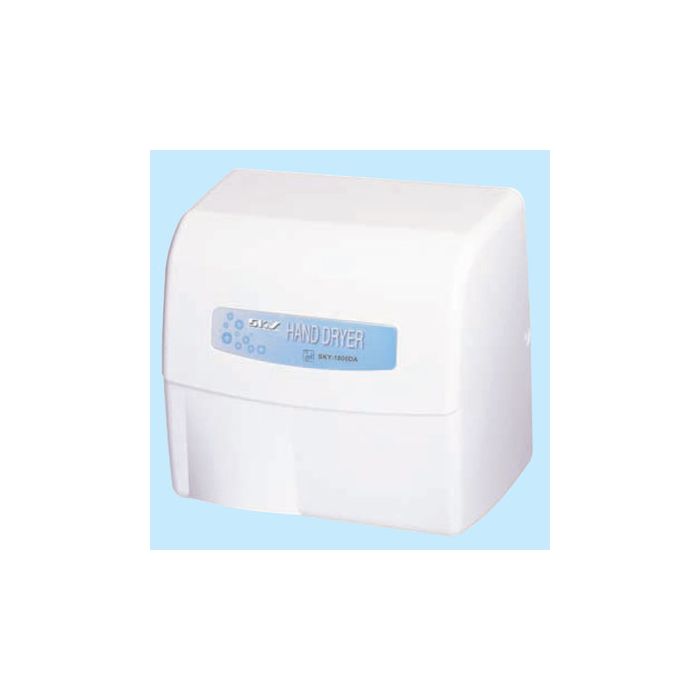

SKY-1800DA AUTO DRYER CAST ALUMINUM COVER, WHITE, EA

AUTOMATIC OPERATION DRYER OVERVIEW Touch free operation Place hands under the nozzle within 10-15 cm, dryer will activate automatically. Power cut off automatically after 120 seconds for safety. Dryer automatically power off when hands are removed. PUSH BUTTON DRYER OVERVIEW Push the BUTTON to activate hand dryer. Place hands under the nozzle within 10-15 cm to dry hands. Adjustable timer up to 60 seconds. Power cut off automatically after 120 seconds for safety. FEATURES Brush motor for 1800 series. Heat assembly: 76��C (169��F) thermostat Adjustable sensitive distance from 10-30 cm for auto dryer. Adjustable timer 30-60 seconds for push button dryer. Built in overheat safety switch. 2 vandal-proof lock screws and key wrench. CE/LVD/EMC/UL listed GENERAL SPECIFICATIONS Model Heater Motor RPM CFM Sound Level 1800PA/DA/DS 1800W 1/8HP 3450 171 55+/-db ELECTRICAL SPECIFICATIONS Model Volts Amps Watts Hz Drying Cycle 1800PA/DA/DS 120 15 1800 60 30Sec DIMENSIONS & WEIGHT Model Dimension Shipping Weight 1800PA 10.5"Wx8.75"Hx6.75"D 10 LBS 1800DA/DS 9"Wx8.5"Hx7"D 11 LBS WARRANTY In addition to Sky's one year guarantee, Sky extends a limited 3 year warranty from the date of installation on all parts to the original owner of the installed unit against defects in factory workmanship or material under normal use and service. This warranty is limited to the repair or exchange of defective parts at the option of SKY. GENERAL SAFETY INFORMATION Disconnect power before installation or servicing. This product intended for installation by a qualified service person. Use AWG No.12 solid conductor for wiring. All units must be supplied with a 3-wire service. The ground wire must be connected to the dryer's backplate. Failure to properly ground unit could result in severe electrical shock and / or death. Do not install dryer over washbasin. INSTALLATION 1. Fix the position card on the wall. Suitable height for hole "D" IS 50" from ground. 2. Drill 4 holes (A.B.C.D. 5/16" diameter and 3/8" depth.) 3. Take off the mounting instruction sheet. Hammer dowel into 4 holes. 4. Remove the housing fromthe base plate; fix the base plate firmly on to the wall. 5. Connections: Connect the live wire (colored red or brown) to the terminal block marked "L". Connect the natural wire (colored black or blue) to the terminal blocked marked "N". Connect the ground wire (colored green and yellow) to the green screw marked "". 6. Attach housing back to base plate. RECOMMENDED MOUNTING HEIGHT (Distance from floor)
